File Generator Pro documentation

PolyLabs | Version 1.2 | Nov 3, 2020 | support@polylabs.co

Introduction

File Generator Pro is a rethinking of the built-in script creation system in Unity. When developing games, you'll find that many of your files aren't MonoBehaviours, but the Create C# Script option in Unity only provides the ability to create a default class deriving from MonoBehaviour.

File Generator Pro enables you to create classes, interfaces, enums, and structs. It is capable validating classes and implementing complex inheritance on file creation, and even allows you to create multiple classes at once using the batch tool! Additionally, this tool has the ability to generate general-purpose files such as JSON, XML, Text, and even Markdown files.

Getting Started

File Generator Pro has two primary ways of being utilized; via the top menu and the project window context-menu.

Accessing Via Top Menu

To open the tool using the top menu, navigate to Tools => File Generator Pro => New File...

accessViaTopMenu

Accessing Via Project Context View

In the Project window, you can either select the Create dropdown, or select any folder in your hierarcy where you would like to create a file and right-click Create => File Generator Pro => NewFile...

accessViaContextMenu

Selecting on a file or directory in the Assets folder will result in the source destination to default to the currently selected object in the project hierarchy.

Note: You can still change the file destination at any time!

General File Menu

generalWindowImage

Clicking on any icon in the selection menu will navigate to the appropriate creation menu.

Creating a Class

createClassImage

Class Name: the name of the class you will be creating. This will also be the name of the resulting file.
Access: the access of a C# entity defines its visibility to other classes. Public is selected by default.
Class Type: defines whether the class is a default (concrete) class, abstract, or static.
Super Class: the super (base, parent, etc..) class that will be inherited from. Depending on the preferences, the generated class will attempt to implement any unimplemented abstract methods for you.
- A super class that doesn't exist in any assemblies will result in an error being displayed on the screen. (See FAQ for troubleshooting)
- MonoBehaviour Classes cannot be static or serialized.
Namespace: the namespace that this class will belong to.
- The namespace cannot be the same name as the class name.
Interfaces: This is a list container for all of the interfaces that this class will implement. Interfaces can be listed in any way that feels comfortable, as long as they are separated by a comma, space, or newline (or any combination of the three).
- An interface that doesn't exist in any assemblies will also result in an error.
- All interface methods will be auto-implemented if the auto-implement preference is selected.

Default Imports: The default imports that are pre-generated in all Unity C# files.


xxxxxxxxxx
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

System.Serializable: should the class be serializable?
- MonoBehaviours cannot be serialized.
Default Constructor: should the generator create a default constructor for the class?
- Static classes with the default constructor selected will generate a static constructor.
- MonoBehaviours cannot contain constructors.

File Destination

The source folder is selected by using the Browse.. button. Something to note is that the source file can only be created within the Assets folder.

Selecting Create & Open will generate the file and open it in the default code editor set in the Unity preferences.

Creating an Interface

createInterfaceImage

Interface Name: the desired name of the interface.
Access: the visibility of the interface to other entities.
Namespace: the namespace that this interface will reside in.
- The namespace cannot be the same name as the interface.
Interfaces: the interfaces that this interface will be inheriting from or extending.
- Unlike class generation, auto-implement will not write in any inherited interface methods.

Creating an Enum

createEnumImage

Enum Name: the name of the enum to be created.
Access: the visibility of the enum type.
Namespace: the namespace that this enum will belong to.
- The Namespace and Enum name cannot be the same.
Enum Values: similar to the interface text boxes, you can input the values you want the enum to contain, and they will be automatically added to the code.
- Duplicate enum values will automatically be removed during generation.
System.Serializable: should the enum be serializable?

Creating a Struct

createStructWindow

Struct Name: the name of the struct to be created.
Namespace: the namespace that this struct will belong to.
Access: the visibility of this struct.
System.Serializable: should the struct be serializable?

The Batch Tool

batchToolImage

Class Names: similar to the interface text boxes, you can insert the names of the classes you want to create using commas, spaces, and newlines (in any combination).
Access: the visibility of the classes being created.
Class Type: will the classes be concrete (default), abstract, or static?
Super Class: the base class that all the classes will derive from.
- The super class must already exist, otherwise an error will display on screen.
Interfaces: a list of interfaces that the classess will implement
- Interfaces must exist, otherwise an error will display on screen.
System.Serializable: are the classes going to be serializable?
- MonoBehaviour classes cannot be serialized
Default Constructor: should the generator add default constructors to the classes?
- In the event of static classes, static constructors will be generated.
Namespace: the namespace that the classes will belong to.

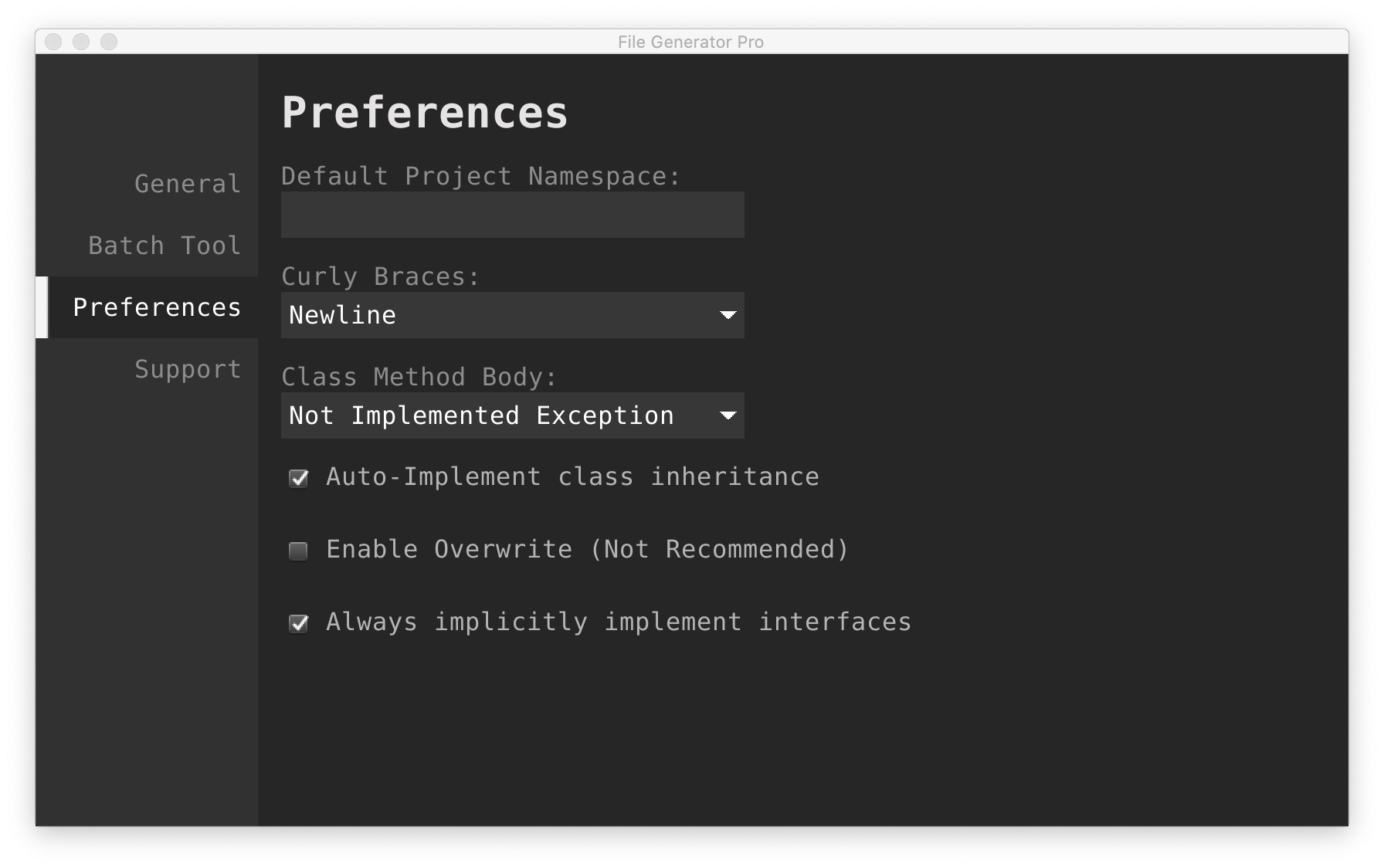

Preferences

Preferences Image

Default Project Namespace

With this, the Namespace field in each category will automatically be populated with the chosen namespace. This takes effect project-wide. By default, this is left empty.

Curly Braces

Defines the code preference for how to format where curly braces should go in code. Newline is selected by default.

Newline


xxxxxxxxxx
public class MyClass
{
  public void MyMethod()
  {
    // ...
  }
}

Sameline


xxxxxxxxxx
public class MyClass {
  public void MyMethod() {
    // ...
  }
}

Class Method Body

When auto-implementing class methods, this option defines what should be placed in the method body by default.

Return Default


xxxxxxxxxx
public class MyClass
{
  public int MyMethod()
  {
    // TODO: implement this method.
    return 0;
  }
}

NotImplementedException


xxxxxxxxxx
public class MyClass
{
  public int MyMethod()
  {
    // TODO: implement this method.
    throw new System.NotImplementedException();
  }
}

Auto-Implement Class Inheritance

True by default. When selected, the generator will attempt to automatically populate the newly created class with the correct methods. It is able to recursively traverse inheritance trees to find any unimplemented abstract methods, and will also implement all interface methods.

When not selected, only the class definition will be provided, and a constructor if chosen.

Enable Overwrite

Not Reccomended, false by default (see FAQ). Setting the overwrite preference to true allows generated files of the same name as existing files to overwrite the contents of those files. Take extra care when contemplating if this should be enabled.

Always Implicitly Implement Interfaces

True by default. When implementing classes that inherit multiple interfaces, there is a possibility for two interfaces to have the same method signatures, but different return values. This clash can create errors, and can be remedied by explicitly implementing the interfaces (with its own drawbacks).

When not selected, whenever two or more interfaces are being implemented, they will always be explicitly implemented to avoid errors.

Frequently Asked Questions

When I type in a UnityEngine super class, it says that the name isn't found. Why?

Except for MonoBehaviour, which is treated as a special case for a default super class, any entity (class, interface, struct, enum, etc..) that is part of the UnityEngine (or UnityEditor) namespace needs to contain the fully qualified name.

For Example

ScriptableObject => UnityEditor.ScriptableObject
EditorWindow => UnityEditor.EditorWindow
MonoBehaviour => UnityEngine.MonoBehaviour is valid by this rule, but both are acceptable

I can't find a class or interface when trying to use inheritance, how can I fix this?

Usually, this comes down to making sure spelling is correct, and checking that you are using the fully qualified name of your entity; if the class or interface is contained in a namespace, make sure you are entering it in as "MyNamespace.MyClass".

If you have done both of these without remedy, reach out to our support contact with a description of your issue.

Why Can't MonoBehaviour classes be serialized?

Unity does not support serialization for MonoBehaviour classes, so any properties within the class you want to serialize will need to be individually serialized. Separating the data into a non-MonoBehaviour class is a common solution to this issue.

Why did my new file fail to write?

There are a variety of reasons that a file might not be able to be created, including:

A file with the same name already exists
The specified path didn't exist
You do not have write access to the directory

Why is the overwrite option not recommended?

When creating a new file or a batch of classes, the last thing you would want to have happen is to accidentally overwrite an important file! While a good version control system would allow this to be easily undone (and everyone should use one when developing games!) , we want to make sure that you fully understand the potential dangers that can come from not being careful with the feature, especially in the case where you do not have a VCS in place.

Support

If you have any questions, concerns, issues, or feature requests don't hesitate to reach out to us at

support@polylabs.co

To best help with an issue, please provide the version number in the support tab of the editor utility, and a description of your issue.
